Direct type auto loader
Home > Direct type auto loader
Vacuum auto loader
Features:
1.Simple operation, easy maintenance
2.Stainless steel door
3.Motor protection device
4.Lack of material alarm

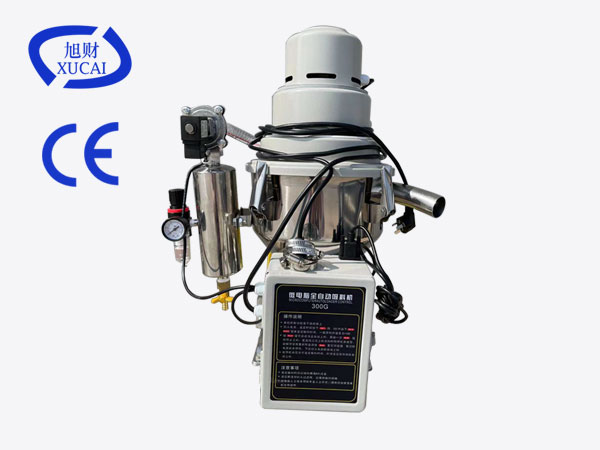

5.300G with air cleaner
6.300G equipped with electric eye detection, directly installed in the injection machine inlet

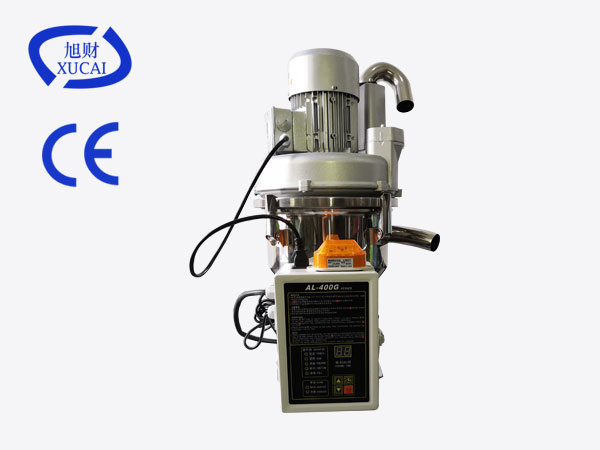

7.400G with cloth filter, suitable for crushed material
- Product Detail
- Inquiry
Technical parameters:
|
Model |
Motor type |
Voltage Specification |
Material feeding capacity (kg/h) |
Suction Lift(M) |
Storage Tank Capacity(L) |
Static Air Pressure (MAX) |
Weight (kg) | |
|
Type |
Motor power (kw) | |||||||
|
AL-300G |
Carbon Brush |
1.1 |
1Φ,220v 50Hz/60Hz |
250 |
3.5 |
7.5 |
1300 |
12 |
|
AL-400G |
Induction |
0.75 |
3Φ,220-380v 50/50HZ |
300 |
4 |
10 |
1400 |
25 |
