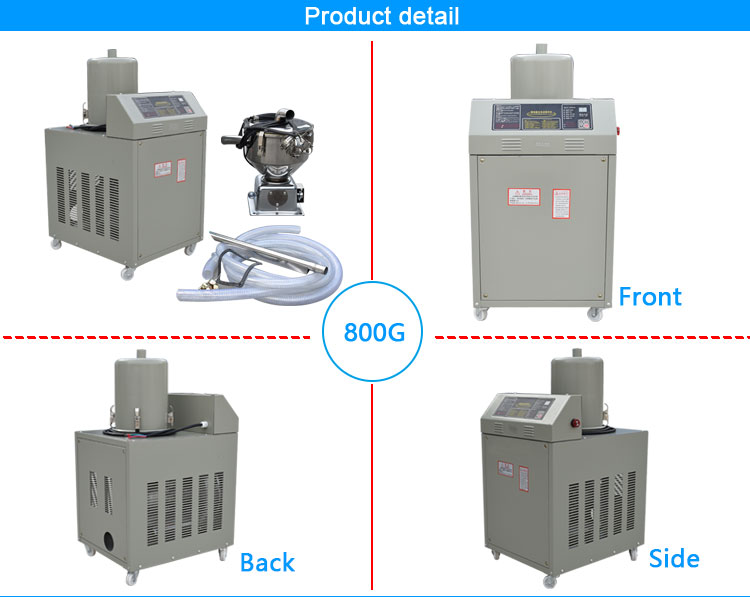

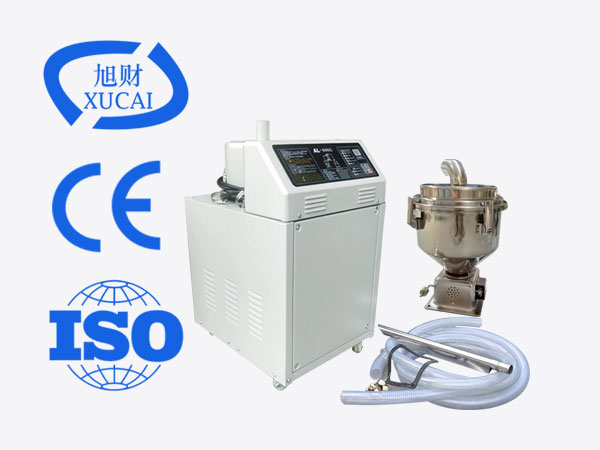

800G auto loader plastic pellet hopper loader
Features:

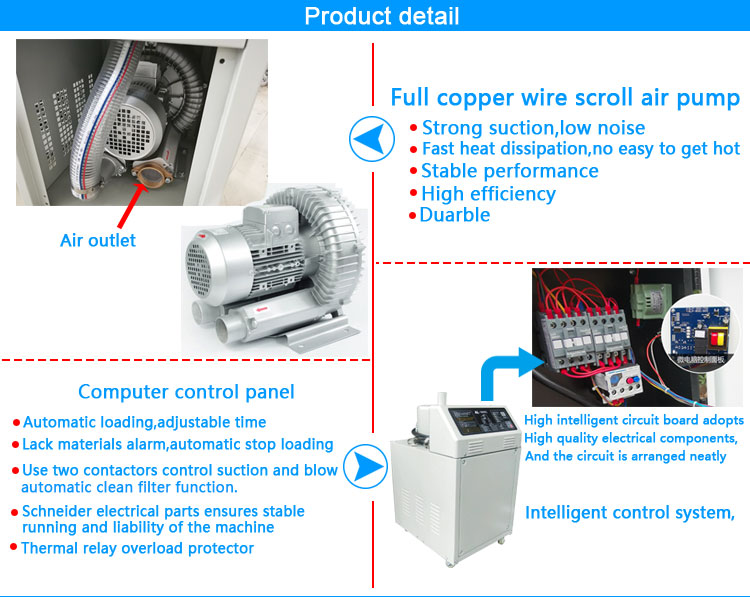

1.The vaccum motor and hopper separation design, safe and easy to operation.
2.Microcomputer control,automatic loading materials,lack of materials alarm.

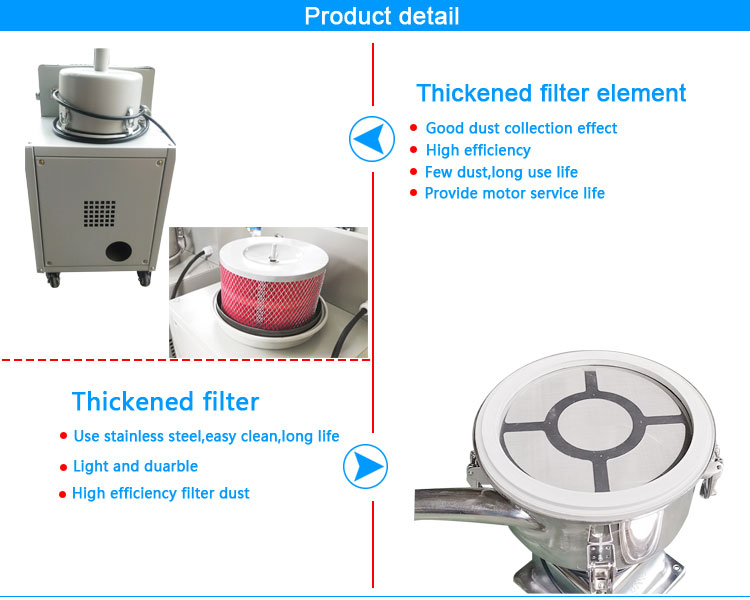

3.Automatic blowback filter,save labor disassembly cleaning.
4.Using double electric eye switch, control the loading action (optional).
5.Overload protective,you can setting loading time.
- Product Detail
- Inquiry
Technical parameters:
|
Model |
Motor |
Voltage Specification |
Material feeding capacity (kg/h) |
Suction Lift(M) |
Storage Tank Capacity(L) |
Static Air Pressure(MAX) |
Weight (kg) | |
|
Type |
Motor Power (kw) | |||||||
|
TAL-800G |
Induction |
1.1 |
3Φ,220-380v 50/60HZ |
350 |
4 |
7.5 |
1800mm/HZO |
53 |
|
TAL-900G |
Induction |
2.3 |
3Φ,220-380v 50/60HZ |
400 |
4 |
12 |
2400mm/HZO |
74 |
