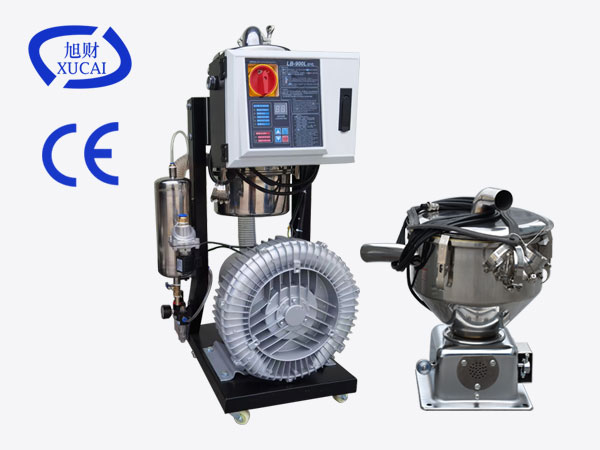

Home > Split type auto loader
Features：

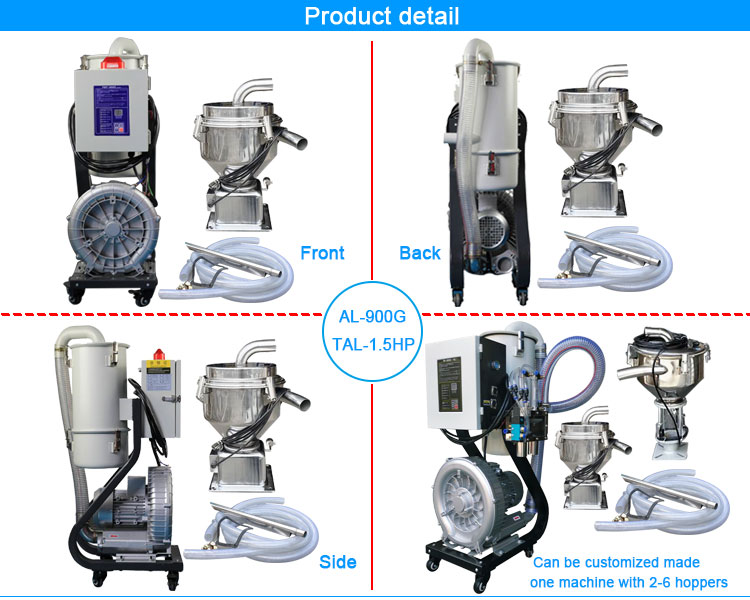

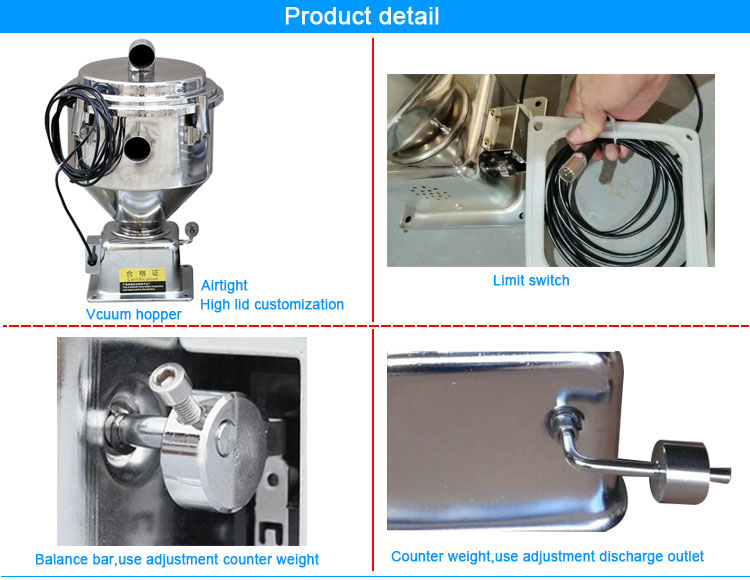

1.The motot is separated from the hopper,easy installed.

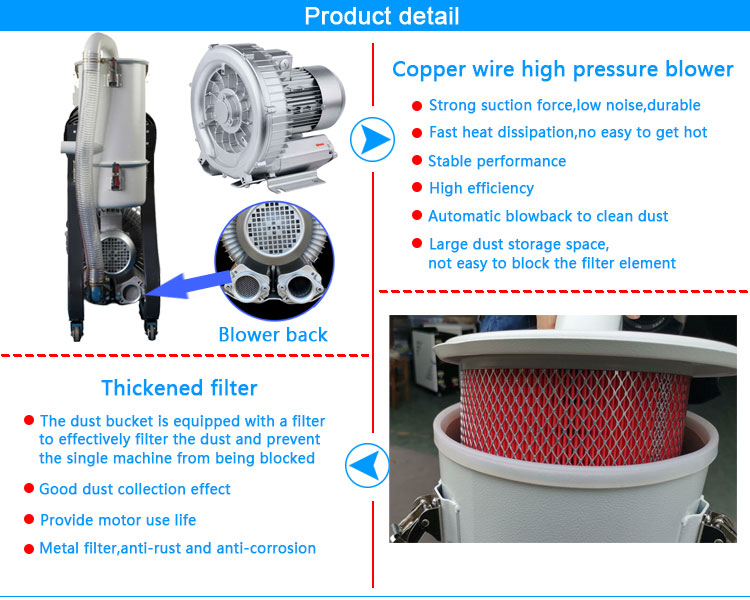

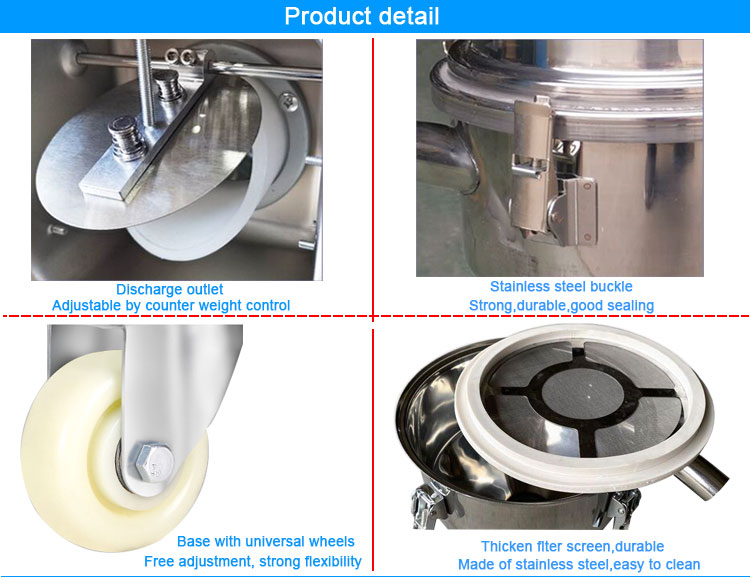

2.Independent filter make it easier for cleaning;automatic blowback clean filter.
3.Stainless hopper can resist rust.

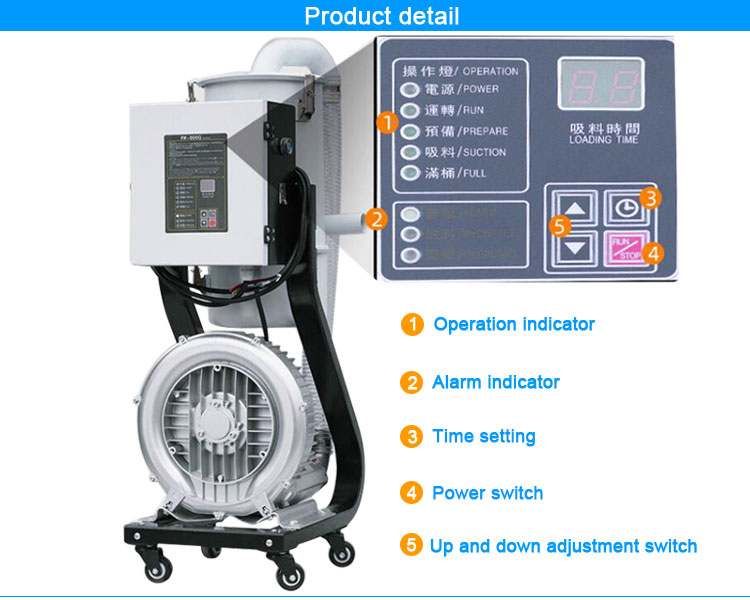

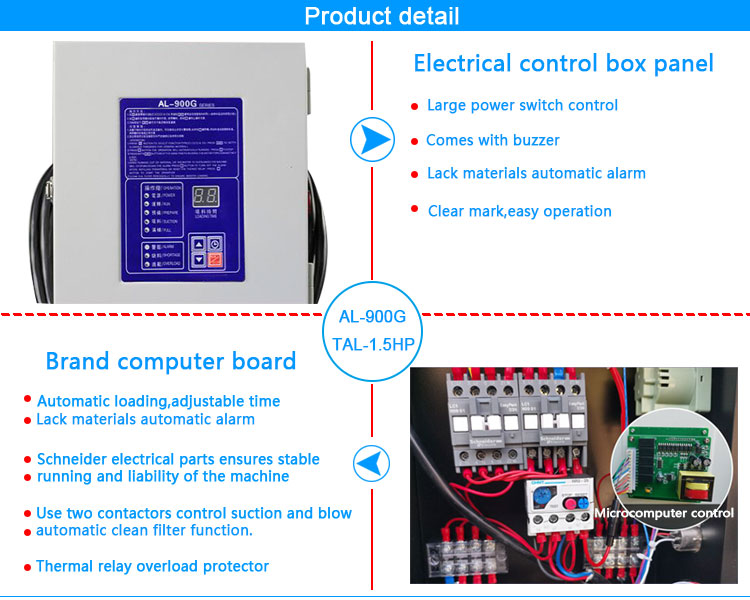

4.Microcomputer controlled which can realize auto operation.
5.Alarming system in case of overloading and lackage of material;.
7.Inductive vacuum pump has low noise but enjoys a long service time.
8.Industrial plastic hopper loader has reverse cleaning function.
9.Can be customized according to your materials and requirements.
- Product Detail
- Inquiry
Technical parameters:
|
Model |
Motor |
Voltage type |
Material feeding capacity (kg/h) |
Suction Lift(M) |
Storage Tank Volume (L) |
Static Air Pressure(MAX) |
Weight (kg) | |
|
Type |
Motor Power (kw) | |||||||
|
TAL-1.5HP |
Induction |
1.1 |
220-440v 50/60HZ,3Φ |
350 |
5 |
7.5 |
2100mm/HZO |
53 |
|
TAL-3HP |
Induction |
2.2 |
220-440v 50/60HZ,3Φ |
450 |
6 |
12 |
2900mm/HZO |
74 |
|
TAL-5HP |
Induction |
4 |
220-440v 50/60HZ,3Φ |
550 |
6 |
25 |
3000mm/HZO |
100 |
|
TAL-7.5HP |
Induction |
5.5 |
220-440v 50/60HZ,3Φ |
800 |
8 |
40 |
4000mm/HZO |
147 |
