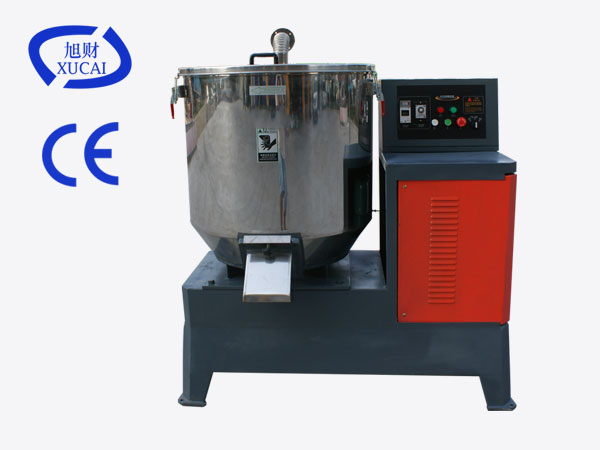

High speed drying mixer

Features:

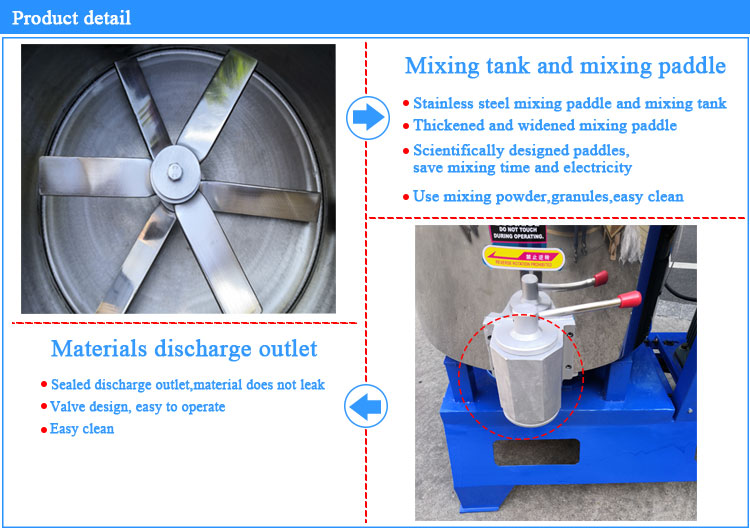

Working principle: plastic drying blending machine, is the use of whipping blades vortex-type high-speed operation, so that plastic particles (or resin powder) to adjust the rolling collision friction heat, so that the material in the mixing of water from the exhaust pipe at the same time to quickly evaporate Dry purpose, the effect is ideal.

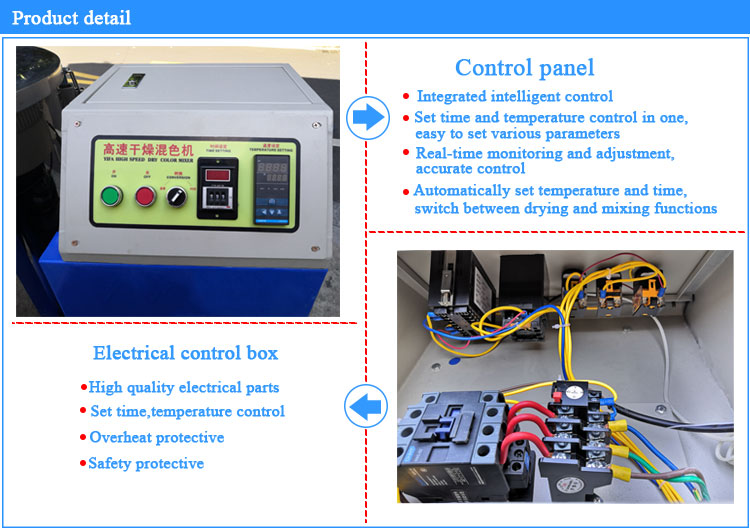

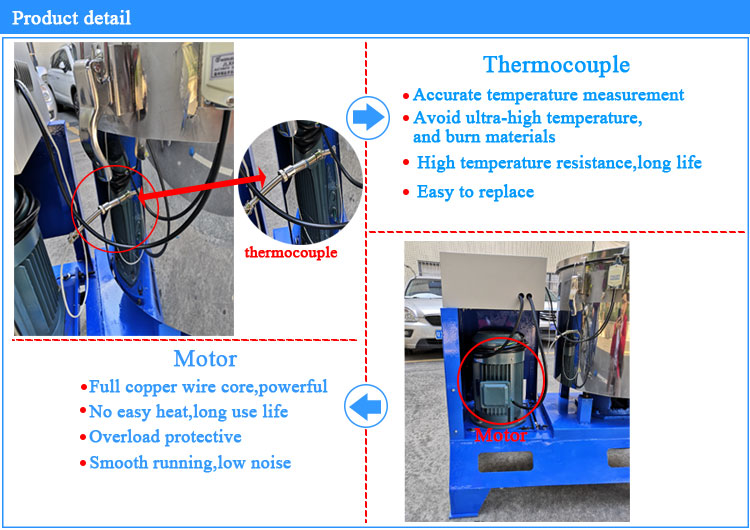

1.set the temperature, time control in one, to facilitate the setting of various parameters
2.Reasonable structure, easy to operate

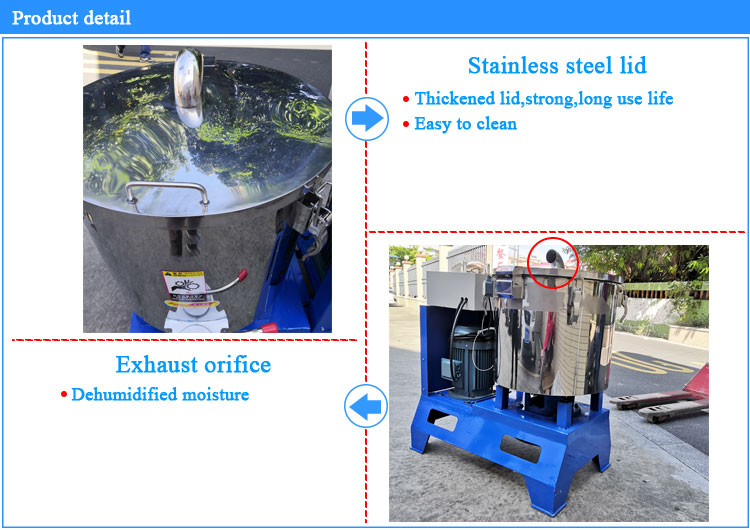

3.Stainless steel liner, shell, easy to clean
4.Double insulation device
5.Sealed chamber mixing, can be magnetized impurities separation (optional)
6.Overload protection

  • Product Detail
  • Inquiry
Technical parameters:

Model

Motor

Power(kw)

Mixing

Capacity

(kg)

Rotation

speed(r/min)

Mechanical

Dimension(mm)

Weight(kg)

TDM-25

5.5

25

480

1000x700x1250

200

TDM-50

7.5

50

480

1180x850x1350

230

TDM-100

15

100

480

1350x1000x1530

270

TDM-200

30

200

480

1700x1300x1700

700
