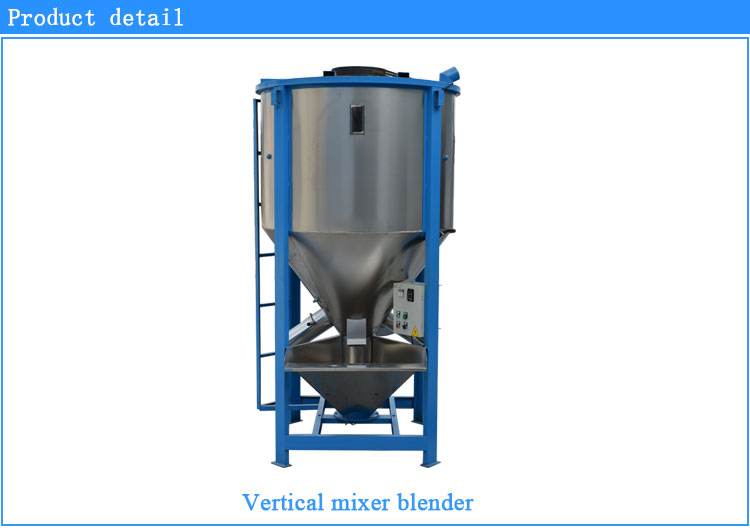

Vertical blender

Features:
1.Spiral cycle mixing makes the raw material mixture more uniform and fast.
2.Applicable to all kinds of plastic and Color Masterbatch is better.
3.Equipment and raw materials are part of the contact materials are made of stainless steel, easy to clean, to avoid corrosion.
4.Equipped with electronic safety protection device to ensure safe operation.
5.This machine is a stainless steel horizontal mixer, especially suitable for the pharmaceutical industry in a certain viscosity of the powder or paste material mixture of uniform.

working principle:
The work of the vertical mixer is the rapid rotation of the screw from the bottom of the barrel from the center to the top of the lifting, and then scattered to the umbrella flying back to the bottom, so that the raw material in the bucket up and down the rolling stir, a short period of time can be a large number Raw material is mixed evenly.

  • Product Detail
  • Inquiry

Technical parameters:

Model

Power

(kw)

Mixing

Capacity(kg)

Dimension(mm)

Rotating Speed

(r/min)

Weigh(kg)

TLQF-500

3

500

1200x1200x2500

300

450

TLQF-1000

4

1000

1500x1500x2750

350

630

TLQF-1500

5.5

1500

1700x1700x3150

300

900

TLQF-2000

7.5

2000

1850x1850x3300

350

1050

TLQF-3000

7.5

3000

2000x2000x3750

350

1250
