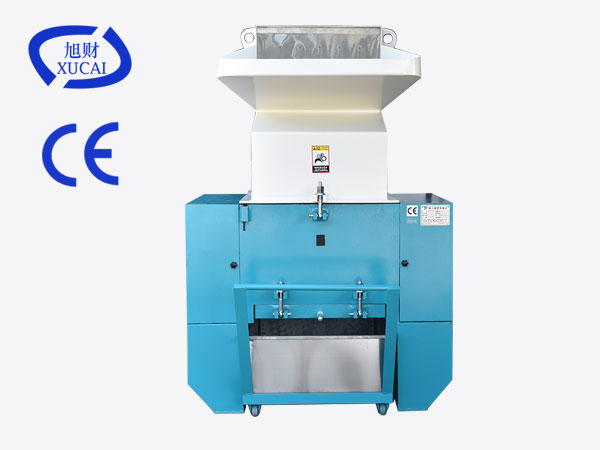

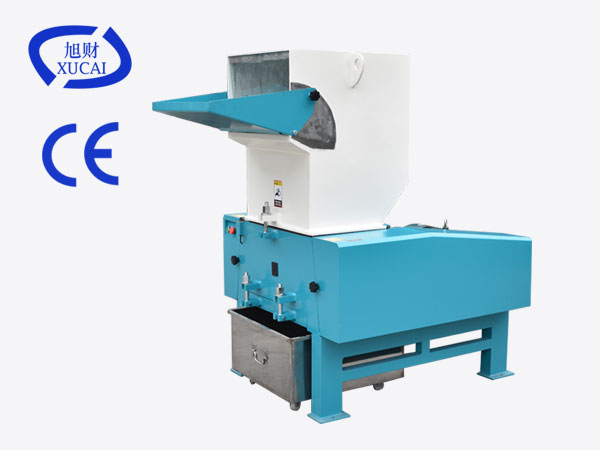

Home > Plastic bottle shredder

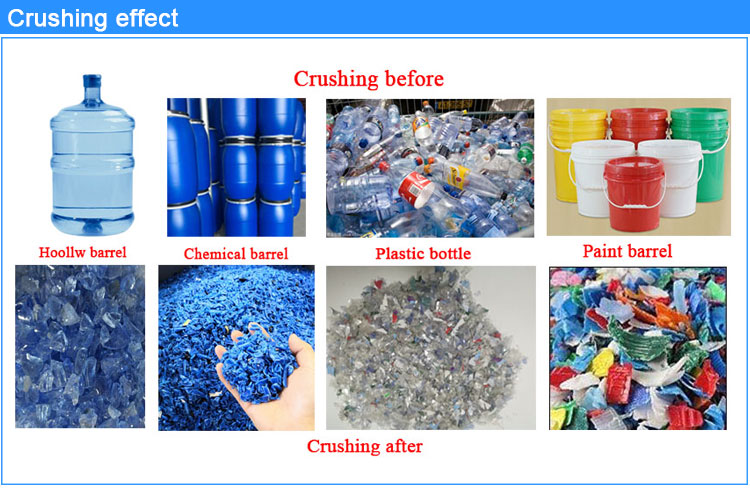

1.This crusher is suitable for crushing of recycled plastic bottles,plastic boxes,steering racks,bottoms,sponge,clothes,thin film and other materials.

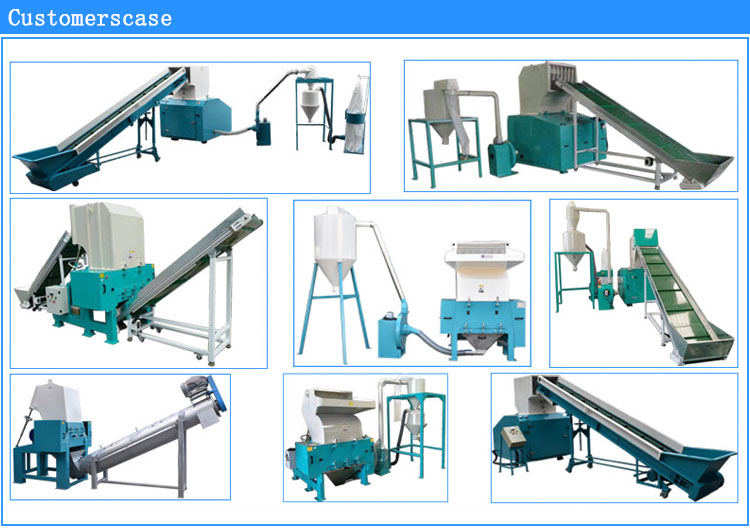

2.Easy in operation.It's unique cutter shelf is specialized for thin materials and large-sized thin frames and may elevate working efficiency.Inhaling fans and material storage bucket may be installed together to form a crushing recycling system to give full play to recycling efficiency.
3.Mature manufacture techniques,integrating manufacture inbox body,knife shelves and other important parts to ensure a perfect match.
4.Good designing structure,convenient operation,energy-saving and durable,high efficient and economical.

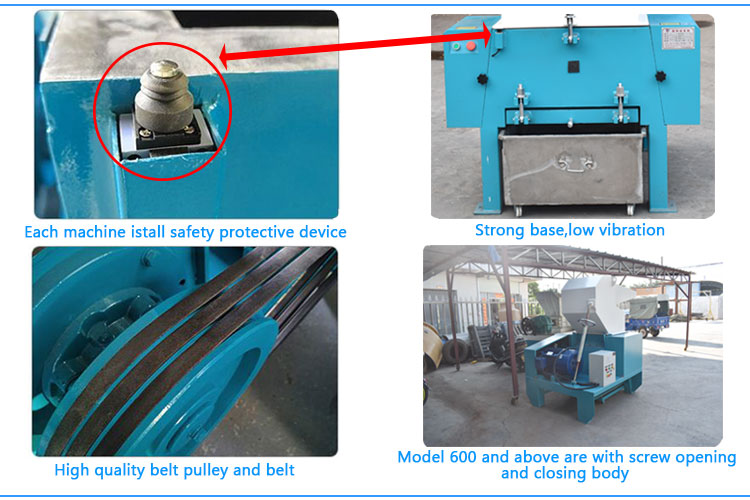

5.Several security protection devices to ensure safe operation.
6.Input sieve with double-deck soundproof design to mitigate noise.
7.Machines in this series are stable,low noise,powder-pollution-free during the operation.The granules are evently produced and in good performance.No overheating during operation and long use life.

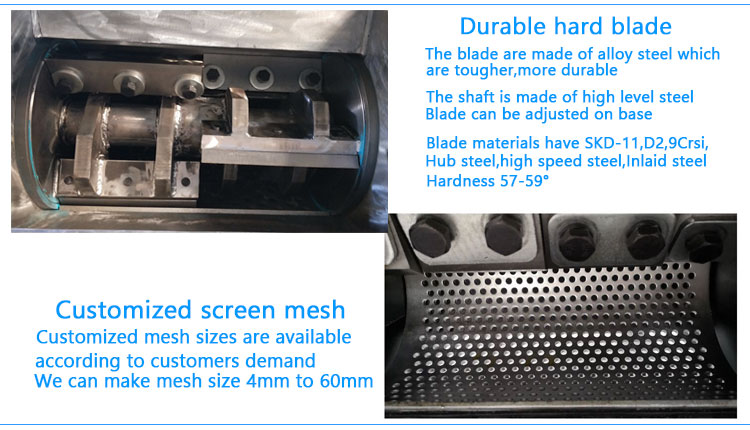

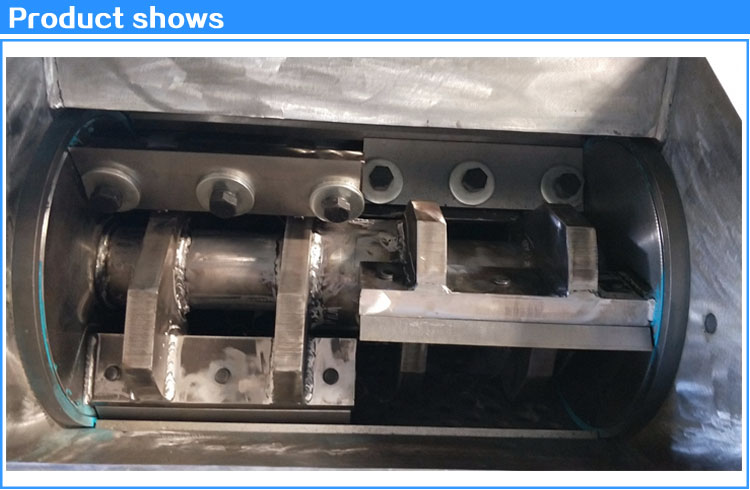

8.The crusher adopt sealed bearings to ensure the long-term perfect operation of bearing.The cutter shape is reasonable to render the products into even granules.The knife is processed in heat treatment and long life.
- Product Detail
- Inquiry
Plastic bottle crusher technical parameters:
|
Model |
Diameter of Crushing Chamber(mm) |
Crushing capacity (kg/h) |
Motor Power (kw) |
Fixing Cutter (pcs) |
Flexible Cutter (pcs) |
Mechanical Dimension (mm) |
Weight (kg) |
|
TLE2520 |
250x200 |
40-60 |
2 |
2 |
3 |
1020x670x1090 |
170 |
|
TLE3126 |
310x240 |
50-80 |
5.5 |
2 |
3 |
1150x720x1220 |
235 |
|
TLE4132 |
410x320 |
70-150 |
7.5 |
2 |
6 |
1080x860x1370 |
430 |
|
TLE5132 |
510x320 |
100-200 |
11 |
2 |
6 |
1200x990x1550 |
550 |
|
TLE6033 |
600x330 |
150-250 |
15 |
2 |
6 |
1290x1130x1670 |
650 |
|

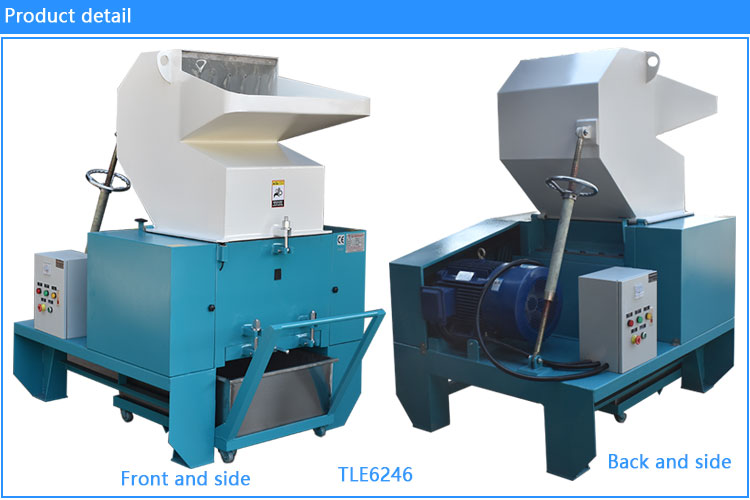

TLE6246 |
620x460 |
200-500 |
22 |
2 |
6 |
1600x1240x1970 |
900 |
|
TLE7246 |
720x460 |
250-600 |
22 |
2 |
6 |
1600x1340x1970 |
1100 |
|
TLE8146 |
810x460 |
300-700 |
30 |
4 |
6/9 |
1650x1450x2080 |
1600 |
|
TLE8150 |
810x500 |
300-800 |
30 |
4 |
9 |
1650x1450x2080 |
1600 |
|
TLE8156 |
810x560 |
300-900 |
37 |
4 |
6/9 |
2000x1500x2250 |
1900 |
|
TLE8256 |
820x560 |
300-900 |
37 |
4 |
9 |
1800x1480x2330 |
1900 |
|
TLE1065 |
1020x650 |
350-1000 |
45 |
4 |
12 |
1960x1750x2660 |
2300 |
|
TLE1083 |
1030x830 |
600-1200 |
55 |
4 |
15 |
2900x2120x3420 |
3700 |
|
TLE1283 |
1230x830 |
650-1300 |
75 |
4 |
9/18 |
3010x2320x3700 |
4500 |
|
TLE1510 |
1530x1000 |
1000-2000 |
75 |
6/10 |
9/15 |
3010x2550x3700 |
6000 |
