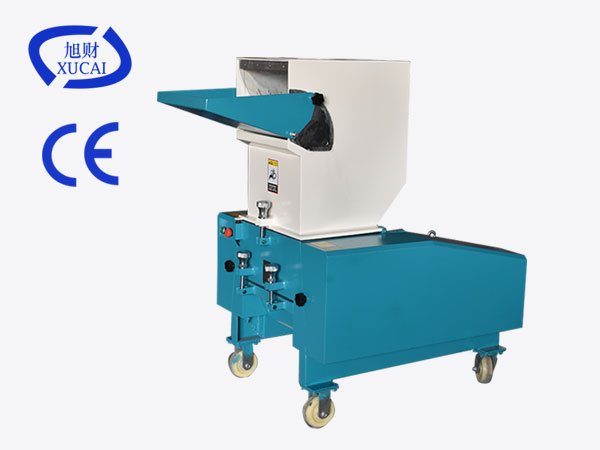

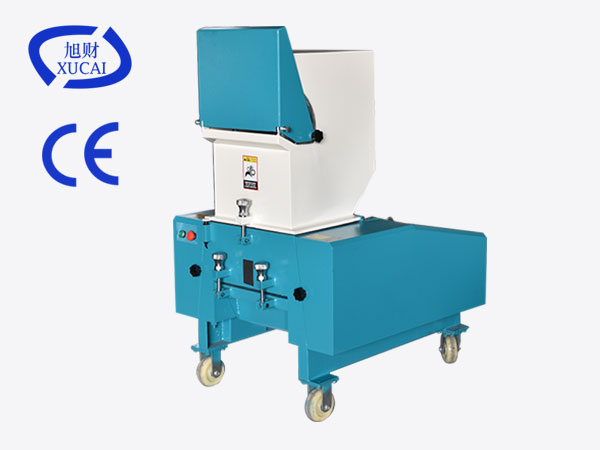

1.This machine is suitable for shredding of recycled plastic bottles,plastic boxes,steering racks,bottoms,enclosure,thin film and other materials.
The operation is easy.It's unique cutter shelf is specialized for thin materials and large-sized thin frames and may elevate working efficiency.Inhaling fans and material storage bucket may be installed together to form a crushing recycling system to give full play to recycling efficiency.
Mature manufacture techniques,integrating manufacture inbox body,knife shelves and other important parts to ensure a perfect match.
Good designing structure,convenient operation,energy-saving and durable,high efficient and economical.

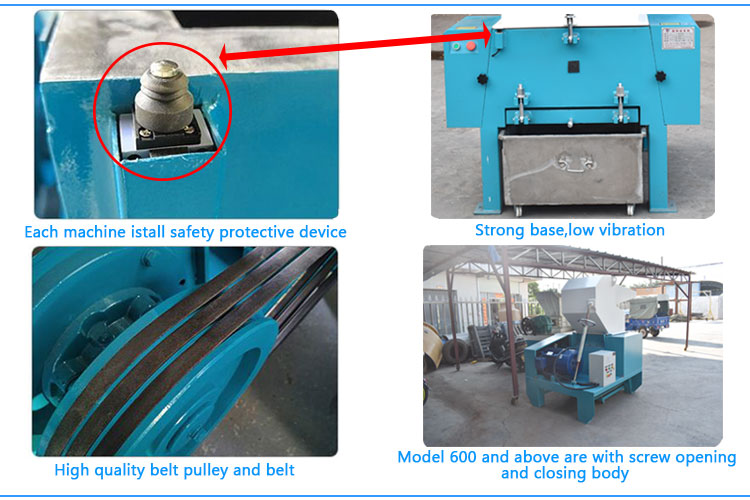

Several security protection devices to ensure safe operation.
Input sieve with double-deck soundproof design to mitigate noise.
Machines in this series are stable,low noise,powder-pollution-free during the operation.The granules are evently produced and in good performance.No overheating during operation and long use life.

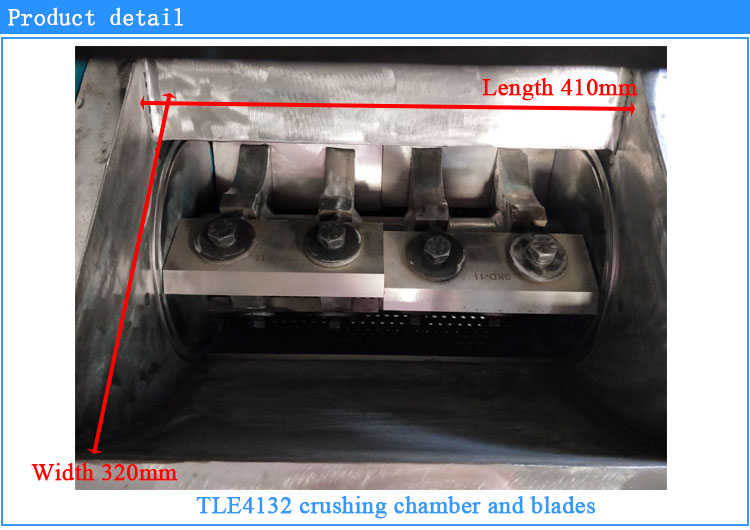

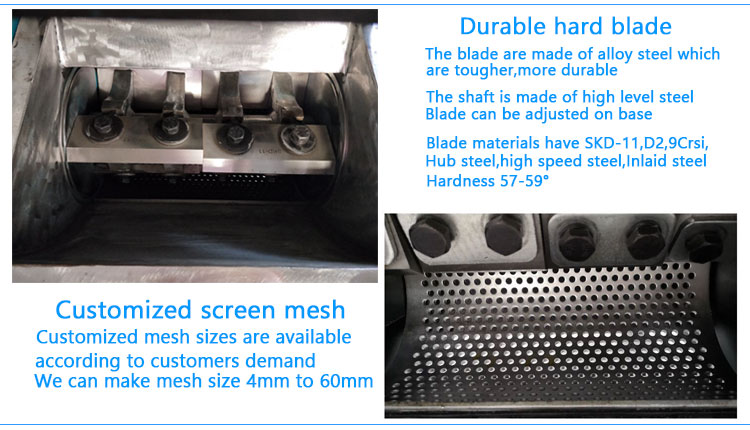

The plastic shredder adopt sealed bearings to ensure the long-term perfect operation of bearig.The cutter shape is reasonalbe to render the products into even granules.The knife is processed in heat treatment and long life.
- Product Detail
- Inquiry
|
Model |
Diameter of Crushing Chamber(mm) |
Crushing capacity (kg/h) |
Motor Power (kw) |
Fixing Cutter (pcs) |
Flexible Cutter (pcs) |
Mechanical Dimension (mm) |
Weight (kg) |
|
TLE2520 |
250x200 |
40-60 |
2 |
2 |
3 |
1020x670x1090 |
170 |
|
TLE3126 |
310x240 |
50-80 |
5.5 |
2 |
3 |
1150x720x1220 |
235 |
|

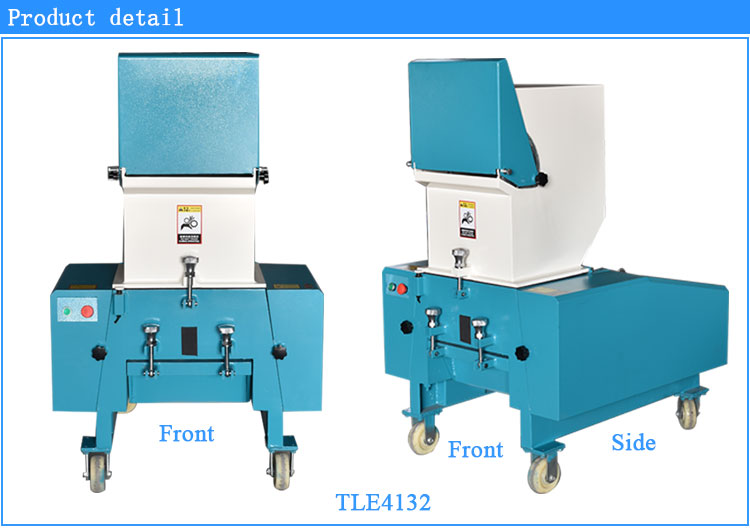

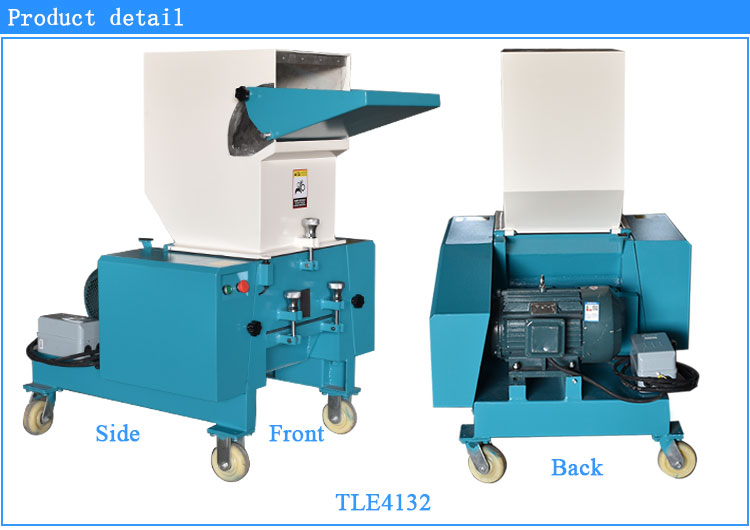

TLE4132 |
410x320 |
70-150 |
7.5 |
2 |
6 |
1080x860x1370 |
430 |
|
TLE5132 |
510x320 |
100-200 |
11 |
2 |
6 |
1200x990x1550 |
550 |
|
TLE6033 |
600x330 |
150-250 |
15 |
2 |
6 |
1290x1130x1670 |
650 |
|
TLE6246 |
620x460 |
200-500 |
22 |
2 |
6 |
1600x1240x1970 |
900 |
|
TLE7246 |
720x460 |
250-600 |
22 |
2 |
6 |
1600x1340x1970 |
1100 |
|
TLE8146 |
810x460 |
300-700 |
30 |
4 |
6/9 |
1650x1450x2080 |
1600 |
|
TLE8150 |
810x500 |
300-800 |
30 |
4 |
9 |
1650x1450x2080 |
1600 |
|
TLE8156 |
810x560 |
300-900 |
37 |
4 |
6/9 |
2000x1500x2250 |
1900 |
|
TLE8256 |
820x560 |
300-900 |
37 |
4 |
9 |
1800x1480x2330 |
1900 |
|
TLE1065 |
1020x650 |
350-1000 |
45 |
4 |
12 |
1960x1750x2660 |
2300 |
|
TLE1083 |
1030x830 |
600-1200 |
55 |
4 |
15 |
2900x2120x3420 |
3700 |
|
TLE1283 |
1230x830 |
650-1300 |
75 |
4 |
9/18 |
3010x2320x3700 |
4500 |
|
TLE1510 |
1530x1000 |
1000-2000 |
75 |
6/10 |
9/15 |
3010x2550x3700 |
6000 |
